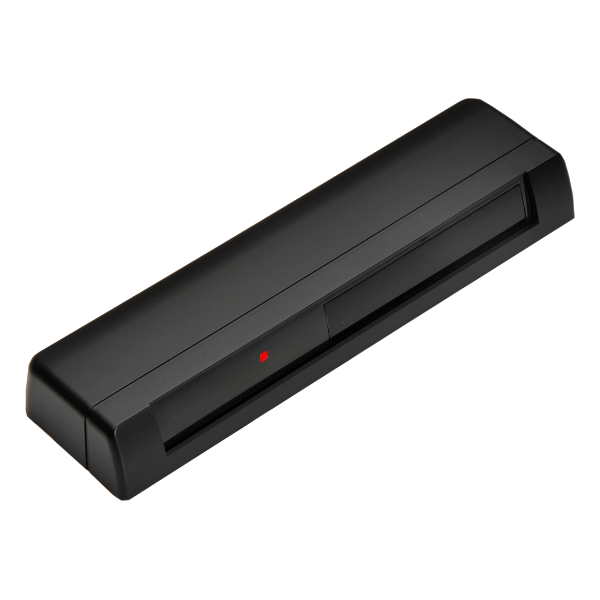

Sliding Door Activation and Pedestrian Safety in one Compact Sensor EN16005 compliant

Infrared Technology, Dual Relay Output

• Compact
Smallest sensor on the market that offers EN16005 compliant
automatic door activation combined with pedestrian safety
• Pedestrian Safety
Dense and reliable curtain of safety beams focused directly in
front of the moving door with a factory set presence timer setting of 30s
• Ideal for Internal Mounting
Only 37mm of headroom required for internal mounting in a door
engine cover or dropped ceiling when mounted in conjunction with
our HA-14 internal mounting bracket
• Installs in Minutes
Set the safety zone in front of the sliding door and change only
two dip switch settings for full compliance to European automatic door
norms EN16005

Technical Specification
Model
3H-IR14C: Dual Relay Output Pedestrian Door Activation + Safety
Detection Method Active Infrared Detection
Installation Height 3.0m (9.84ft) Max
Sensor Dimensions
210mm (W), 59mm (H), 28.5mm (D)
Presence Timer

2sec, 30sec, 1min and infinity

IP Rating 54
Power Supply
12 - 24V AC/DC ± 10%
Power Consumption AC12V-1.1 [VA] (Max), DC12V-70 [mA] (Max)
AC24V-1.3 [VA] (Max), DC24V-40 [mA] (Max)
Output Safety (R1, R2) – Form A Relay Contact DC50[V] 0.1[A] (Resistance load)
Output Activation (R2, R3, R4) – Form A Relay Contact DC50[V] 0.1[A] (Resistance load)
Operating Temperature -20°C to +60°C, (-4°F to 140°F)
Weight
Approx 0.18kg
Available Colours Black: Product Code = 3H-IR14C/BL

HR100 Activation and Safety Sensor

HR100 Activation and Safety Sensor

£119.99 Inc VAT £143.99

HR100-2  Activation and Safety Sensor

HR100-2 Activation and Safety Sensor

£149.69 Inc VAT £179.63

HR94D Activation and Safety Sensor

HR94D Activation and Safety Sensor

£123.25 Inc VAT £147.90

HR94D1 Side Screen Safety Sensor

HR94D1 Side Screen Safety Sensor

£89.99 Inc VAT £107.99

Hotron Ceiling Attached Bracket

Hotron Ceiling Attached Bracket

£19.99 Inc VAT £23.99

HR100 Replacement Cover

HR100 Replacement Cover

£19.99 Inc VAT £23.99

Write a review

Please login or register to review

3H-IR14C Activation & Safety Sensor - EN16005

  • Brand: Hotron
  • Product Code: 3H-IR14C-Sensor
  • Availability: In Stock
  • £109.00

  • Inc VAT £130.80
