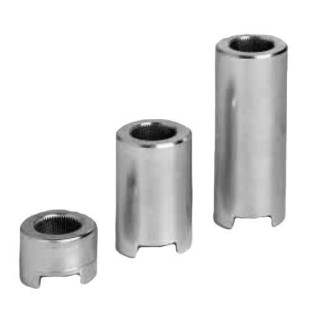

Lever adaptors for arms

The lever adapters are the joining elements between the operator drive shaft and the arm lever. They also serve as extension pieces to compensate height differences between the operator and the connector to the arms.

A lever adapter 20 is included in each drive arm package.



  • Standard Arm



  • Slide arms pulling and pushing




Type of arms

Lever adapter 20

Lever adapter 50

Lever adapter 65

Lever adapter 80

(dimensions in mm*)

127.808.211

127.808.212

127.808.218

127.808.213

Standard arms









A

8

38

53

68

B

15

45

60

75

c (= ‚D’)

42.5

72.5

87.5

102.5

Slide arms pulling









B

15

45

60

75

d (= ‚D’)

32

62

77

92

E

60

90

105

120

Slide arms pushing









a

8

38

53

68

b

15

45

60

75

e (= ‚D’)

60

90

105

120

DFA127 Slide Arm

DFA127 Slide Arm

£109.99 Inc VAT: £131.99

DFA127 Push Arm

DFA127 Push Arm

£99.99 Inc VAT: £119.99

DFA127 Swing Door Operator

DFA127 Swing Door Operator

£899.10 Inc VAT: £1,078.92

Record BDE-D Control Unit

Record BDE-D Control Unit

£120.00 Inc VAT: £144.00

Record Floor Guide

Record Floor Guide

£39.75 Inc VAT: £47.70

Record STA16/17 Carriage

Record STA16/17 Carriage

£48.69 Inc VAT: £58.43

Write a review

Please login or register to review

DFA127 Lever Adaptor

  • Brand: Record
  • Product Code: DFA127-lever-adaptor
  • Availability: In Stock
  • £30.00

  • Inc VAT: £36.00
