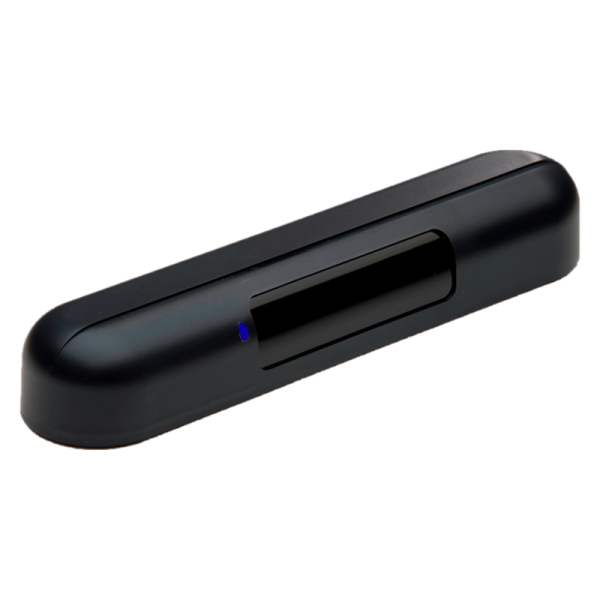

Hotron SSR-3 Activation and Monitored Safety Sensor with Unique “Door Learn” Technology.
Can be fitted at ounting heights of up to 3.2m.
Energy Efficient - Intelligent unidirectional detection ability reduces door hold open time and building energy loss
Unparalleled Pedestrian Safety - Unique ability to memorize door motion allows the infrared safety curtain to be focused inside the moving door leaf resulting in unparalleled pedestrian safety
Large Detection Zone - Adjustable detection zone of 4m wide x 4m deep ensures timely door opening making this the ideal sensor for use in airports, supermarkets, shopping centres etc.
Ease of Installation - All the information necessary to install the SSR-3 sensor is printed on the sensor body
Technical Specification
Model SSR-3 Dual Relay Output Pedestrian Door Activation + Monitored Safety
Detection Method |
Microwave Motion Detection K-Band 24.15Ghz + Active Infrared Detection |
|
Installation Height |
2000mm to 3200mm (6.5ft to 10.5ft) |
|
Sensor Dimensions |
265mm (W), 60mm (H), 43mm (D) |
|
Pattern Adjustment |
Width Adjustment: Microwave Sensitivity Adjustment (Potentiometer) |
|
Depth Adjustment: Active Infrared 3 rows +4° to - 8° (Screw) |
||
Depth Adjustment: Microwave Antenna Adjustment up/down +5° to +45° in 3° steps |
||
Depth Adjustment: Microwave Sensitivity Adjustment (Potentiometer) |
||
Presence Timer |
2sec, 30sec, 1min and infinity (Active Infrared 3 rows) |
|
IP Rating |
54 |
|
Power Supply |
12 to 24V AC or DC ± 10% |
|
Power Consumption |
AC12V-2.5 [VA] (Max), DC12V-150 [mA] (Max) |
|
AC24V-2.5 [VA] (Max), DC24V-80 [mA] (Max) |
||
Relay Hold Time |
Active Infrared: 0.5 sec approx. |
|
Microwave: 1.5 sec |
||
LED Indication |
Power On |
= Green |
|
Doorway Learning |
= Green Blinking |
|
Active Infrared and Microwave Detecting |
= Red |
|
Microwave Detecting |
= Blue |
|
Active Infrared Detecting |
= Red |
|
Detecting Door |
= Orange |
|
Internal Sensor Error |
= Green/Red blinks alternately (Fast) |
|
Low Reflection Level Error |
= Green/Red blinks alternately (Slow) |
|
Hotron SSR-3 Activation and Safety Sensor
- Brand: Hotron
- Product Code: SSR-3/BL
- Availability: In Stock
-
£139.80
- Inc VAT £167.76
