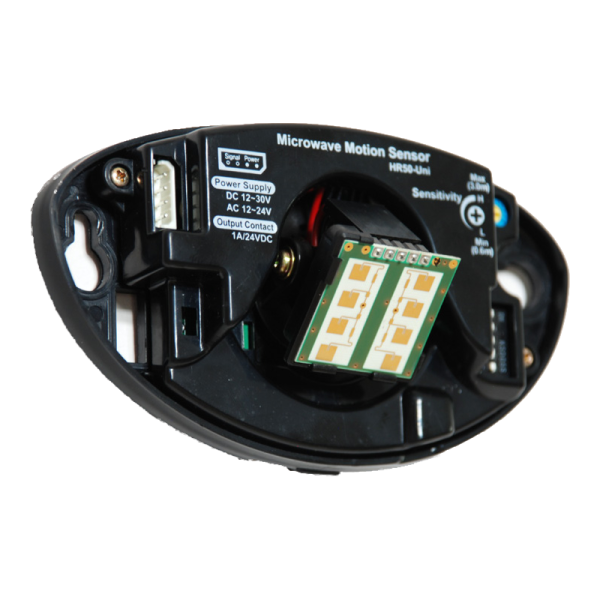

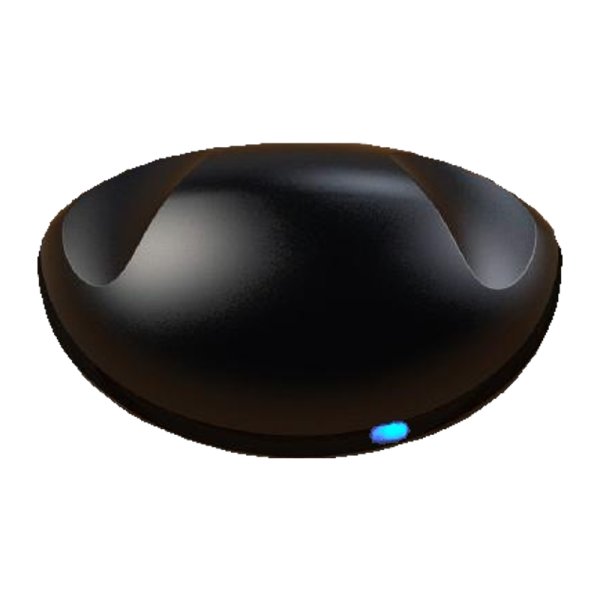

Hotron HR50 Unidirectional high performance motion detection sensor for swing and sliding doors.
Suitable for mounting heights of up to 4m.

• Swing Door Activation - Advanced technology allows mounting of the HR50-Uni on the swing side of a swing door without detecting door movement
• Reduced Building Energy Loss - Maximize energy conservation by reducing door-open time through unidirectional detection
• Versatile - Highly flexible antenna allows mounting above the door or from the ceiling. Interchangeable wide or narrow antenna ensures the desired detection area can be achieved for every installation
• Attractive Design - Small and neat so this sensor will enhance and complement all door types

Technical Specifications:

• Power supply : DC 12~30V, AC 12~24V
• Product Size : 120mm ˣ 70mm ˣ 41.5mm(W ˣ L ˣ H)
• Microwave module : 24.125GHz
• Hold time : 1.2 Sec.
• Detecting field: 5m x 3m (W x D) (Height 2.2m)
• Current consumption : < 1.4W
• Contact capacity : 1A/24VDC
• Max install height : 4.0m
• Operating Temp/Humidity : -20°C~60°C/0~90%
• International Protection : IP54
