Convenient automatic door activation for wheelchair users, the physically challenged, or able bodied pedestrians with their hands occupied.
Ideal for use in universities, doctors offices, rehabilitation centres, restrooms, restaurants, elevators and anywhere ease of door opening is required.

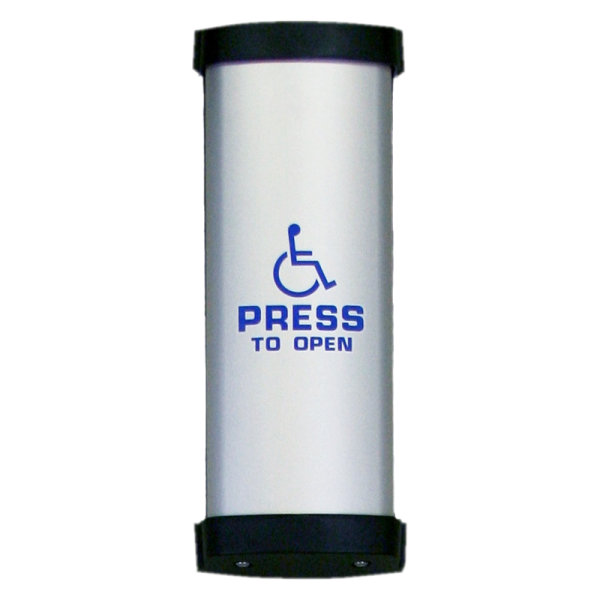

The HandiTap 9” wall switch replaces conventional high/low switch configurations, allowing for activation along the entire length of the 4”-wide, curved surface from virtually any angle or height level.
It features a vertical, rounded design made with anodized, extruded aluminium and sloped ABS caps that are aesthetically pleasing, while providing reliable operation.
Its rugged, durable design and slim profile make it ideal for wall or post mounting inside or out.
This version has a wireless transmitter enclosed in the body and works with the Ultra-small 433MHz wireless receiver.
Features and Benefits
• Smooth, curved touch surface allows for activation from a wide range of angles
• Sloped caps eliminate use as a shelf
• Handicap logo with “Press to Open”
• Wall or post mounting
• Wired or wireless operation
• Weather resistant, rugged construction
• Available in two sizes: 36” or 9” lengths
• Exceeds California Building Code, Section 1117B.6
• Available in clear or dark bronze anodized aluminum
• 433 MHz Ultra-small Transmitter
HANDITAP TECHNICAL SPECIFICATIONS |
||
Models |
9" |
36" |
Overall Dimensions (w x h x d) |
4.28" x 10.68" x 1.82" |
4.28" x 37.68" x 1.82" |
Activation Area |
4" x 9" |
4" x 36" |
Material |
6063-T5 Aluminum Alloy |
|
Finishes |
Clear Anodized - Blue Graphic |
|
|
Dark Bronze Anodized (305M) - White Graphic |
|
Switch |
Momentary SPST (1- |
N.O, 1- N.C) |
|
UL® & CSA Listed |
|
Electrical Power |
12 - 24 VAC/VDC - Hardwired, 9 VDC (battery) - Wireless Transmitter |
|
Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Operating Temperature with Transmitter |
-20°C to +55°C (-4°F to +122°F) |
|
Graphic |
Handicap Logo/Press to Open |
Larco HandiTap 9" (23mm) Vertical Push Pad - Wireless
- Brand: Larco
- Product Code: 9V1N400
- Availability: 2 - 3 Days
-
£167.50
- Inc VAT £201.00
