TECHNICAL SPECIFICATIONS

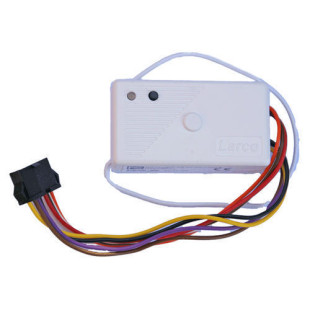

RECEIVER - item # 233804

Frequency

433.92 MHz

Dimensions

2.25” x 1.25” x 0.75”

Security Code Method

Code Hopping - Can Learn up to 12 Different Transmitters

Operating Temperature Range

-4°F to 122°F (-20°C to 55°C)

Electrical Rating

100,000 Cycles @ 2 Amps at Either 24 VDC or 120 VAC

Input Power

24 VAC/VDC or 12 VAC/DC

Output

Two Relay Outputs: 1 NO 1 NC

Certifications

FCC, Industry Canada, CE

TRANSMITTER - item # 234475

Frequency

433.92 MHz

Dimensions

1.25” x 0.875” x 0.25”

Security Code Method

Code Hopping

Battery Life

60,000 Cycles

Certifications

FCC, Industry Canada, CE

Operating Temperature Range

-4°F to 122°F (-20°C to 55°C)
