Sliding Door Activation and Pedestrian Safety in one Compact Sensor

This product is a suitable replacment for the now discontinued HR94D1, HR94D & HR942D Hotron sensors

Infrared Technology, Single Relay Output

• Compact
Smallest sensor on the market that combines door activation with
pedestrian safety in one product
• Pedestrian Safety
Double curtain of infrared safety beams protects pedestrians from
dangerous automatic door movements
• Energy Effcient
Accurately adjustable detection area reduces false door
activations in busy urban environments
• Reliable
Intelligent software along with internal sensor self monitoring
ensures safe and reliable operation in all installation environments

Technical Specification

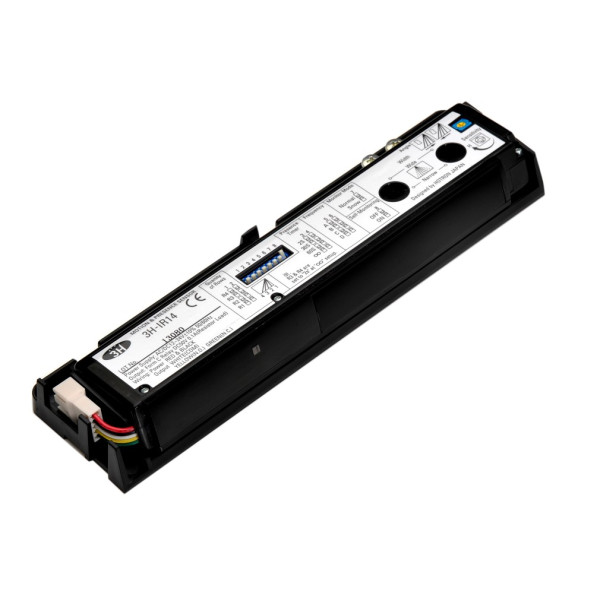

Model	3H-IR14: Single Relay Output Pedestrian Door Activation + Safety
Detection Method	Active Infrared Detection
Installation Height	2000mm to 3000mm (6.5ft to 10ft)
Sensor Dimensions	210mm (W), 59mm (H), 28.5mm (D)
Presence Timer	2sec, 30sec, 1min and infinity
IP Rating	54
Power Supply	12 - 24V AC/DC ± 10%
Power Consumption	AC12V-1.3 [VA] (Max), DC12V-65 [mA] (Max)
	AC24V-1.5 [VA] (Max), DC24V-35 [mA] (Max)
Operating Temperature	-20°C to +60°C, (-4°F to 140°F)
Weight	Approx 180g
Available Colours	Black: Product Code = 3H-IR14/BL
