This product has been discontinued. Suitable alternative(s) should be availabe in the description.



This product has been discontinued!

 A suitable replacment is the 3H-IR14 Activation & Safety Sensor

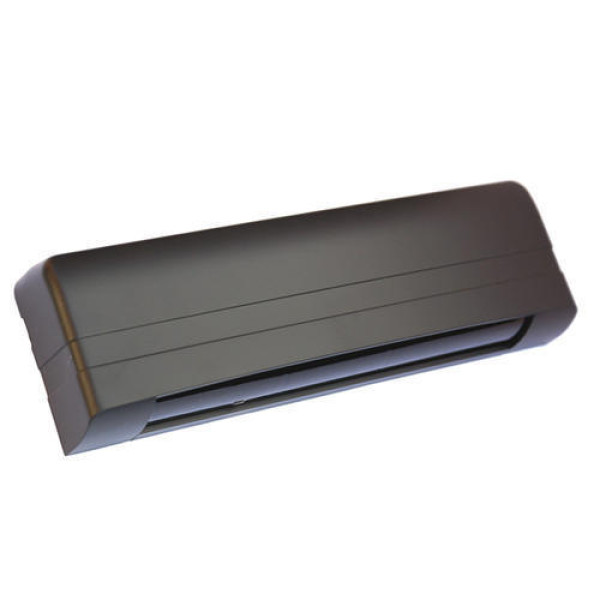

An automatic door activation sensor
consisting of two rows of active infrared
detection at mounting heights of up to 3m.

  • Timely Door Activation
    Flexible and adjustable detection distance from 0.4m to 1.8m at
    Installation height of 2.2m
  • Simple to Install
    Install with ease without the need for a remote control thanks to
    comprehensive instructions printed on the sensor body
  • Slender Design
  • Enhance the look of the sleekest automatic door profile with the
    HR942D’s slim sensor body design

Technical Specification:

Model HR942D Pedestrian Door Activation
Detection Method : Active Infrared Detection
Installation Height 3.0m (9.84ft) Max
Sensor Dimensions 210mm (W), 65mm (H), 30mm (D)
Depth Adjustment 1 ~ 2 rows of detection (Dip Switch)
Body Angle Adjustment 0° ~ +5° in 3 steps
Width Adjustment Wide / Narrow (Dials)
Presence Timer 2s / 15s / 60s / 180s
Frequency 4 Frequencies (Dip Switch)
Quantity of Detection Depth Rows 1 / 2 rows
Monitor Mode Normal / Snow (Dip Switch)
Sensitivity Adjustment Available (Potentiometer)
LED Indication Standby : Green Detecting : Red Door Hunting : Orange
Self Diagnostics : Green & Red Blinking
Power Supply AC/DC 12 ~ 32V ±10%
Power Consumption AC12V : 1.8VA Max, AC24V : 2.8VA Max
DC12V : 100mA Max, DC24V : 60mA Max
Output Relay contact : DC50V 0.1A (Resistor Load)
Output Holding Time Approx. 0.5s
Operating Temperature -20°C ~ +60°C, (-4°F ~ +140°F)
Operating Humidity Below 80%
IP Rating IP54
Weight Approx. 190g (0.42 lbs)
Accessories Provided Cable, Mounting Template, Mounting Screws,
Installation Instructions
