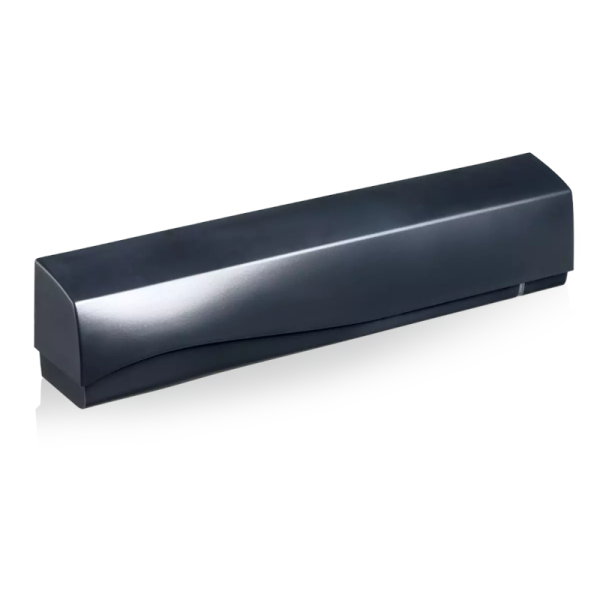

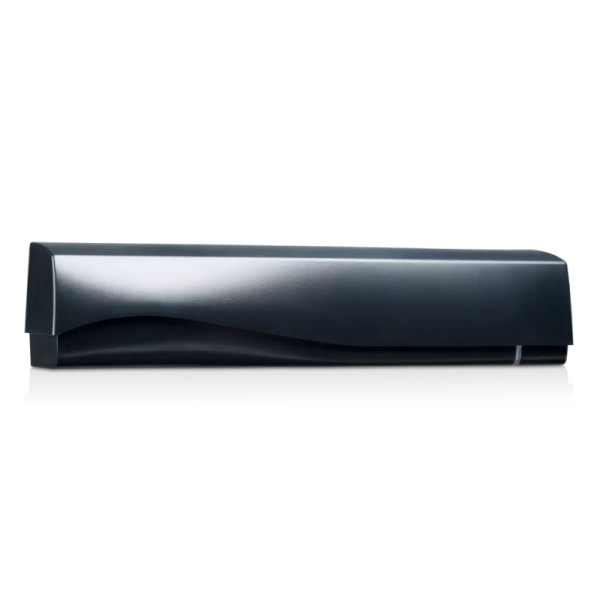

The BEA VIO-DT1 is a combined motion & presence sensor with a double failsafe active infrared curtain for the protection of users, in accordance with the EN 16005 standard.
The unidectional radar controls the opening of the door and safety is ensured by the 24 infrared spot failsafe curtains.
The VIO-DT1 can be mounted up to 3 m.

FEATURES
  • Simple adjustments using DIP-Switches
  • Unidirectional microwave/AIR - 2 rows infra red
  • High protection of individuals, thanks to the two 24-infrared spot failsafe curtains. (EN 16005)
  • Optimum performance thanks to high levels of active, self-adapting infrared immunity
  • Adjustment of the infrared curtain width with the prisms. (curtains of 12 or 24 spots depending on the prism used)
  • Mounting height of up to 3 metres
  • Not remote controled

TECHNICAL SPECIFICATIONS


Supply voltage:

12 V - 30 V DC -5%/+10%

Power consumption:

< 2.2 W

Mounting height:

1.8 m to 3 m

Sensitivity of the test input:

< 1 V : Log. L; > 10 V: Log. H (max. 30 V)

Temperature range:

-25 °C to +55 °C

Degree of protection:

IP54 (IEC/EN 60529)

Noise:

< 70 dB

Expected lifetime:

20 years

Norm conformity:

EN 300 440; EN 301 489-1; EN 301 489-3; EN 62311; EN ISO 13849-1 Performance level «c» CAT2
(under the condition that the door control system monitors the sensor at least once per door cycle); EN 61508 (SIL2); EN
61496-1 (ESPE Type 2) ; EN 12978; EN 16005

Detection mode:

Motion
Min. detection speed: 5 cm/s

Presence
Typical response time: <256 ms Max. presence time: 30 sec

Technology:

Microwave doppler radar
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm2
Active infrared with background analysis
Spot diameter: 0.1 m (typ)
Number of spots: 24
Number of curtains: 2



Angle:

From 15 ° to 50 ° vertical (adjustable)                From -4 ° to +4 ° (adjustable)



Output:

Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC



Hold time output signal:

0.5 s                                                                         0.3 s to 1 s (not adjustable)



Response time on test request:

                                                                                 Typical: < 5 ms
