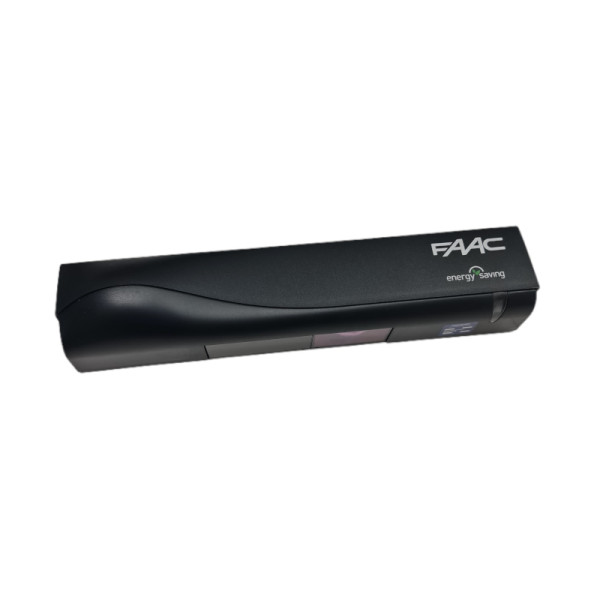

FAAC XDT1 dual technology sensor with monitoring and ARTEK technology.
It combines radar technology for the activation of the door with infrared technology for user protection.
The three-dimensional infrared curtain protects users from any contact with the doors.
Can be used on standard, telescopic and curved automatic sliding doors.
Compliant with EN 16005/DIN 18650.
Identical to the BEA IXIO-DT1 but with FAAC logo on the cover
Manufacturers No: 105114
Features
- Intuitive configuration thanks to an LCD screen and/or a remote control
- LCD graphics screen with choice of language.
- 10 adjustment options for the iR curtains.
- Lateral orientation from -15° to +15° for the radar antenna.
- 4 infrared spotlights visible on the ground for the easy adjustment of the failsafe curtain.
- Plug, push & go
- Dimensions 264 W x 58 H x 58mm D
Specifications
Supply voltage: | 12 V - 24 V AC +/-10% ; 12 V - 30 V DC +/-10% (to be operated from SELV compatible power supplies only) | |
|---|---|---|
Power consumption: | < 2.5 W | |
Mounting height: | 2 m to 3.5 m (local regulations may have an impact on the acceptable mounting height) | |
Temperature range: | -25°C to +55°C; 0-95% relative humidity, non condensing | |
Degree of protection: | IP54 | |
Noise: | < 70 dB | |
Expected lifetime: | 20 years | |
| Motion | Presence | |
Technology: | Microwave doppler radar | Active infrared with background analysis |
Output: | Solid-state-relay (potential and polarity free) | Solid-state-relay (potential and polarity free) |
Test input: | Sensitivity: Low: < 1 V; High: > 10 V | |
Norm conformity: |
| En 16005:2012 Chapter 4.6.8. |
FAAC XDT1 Activation & Safety sensor
- Brand: FAAC
- Product Code: FAAC-XDT1
- Availability: In Stock
£148.00
- Inc VAT £177.60
