EMSW

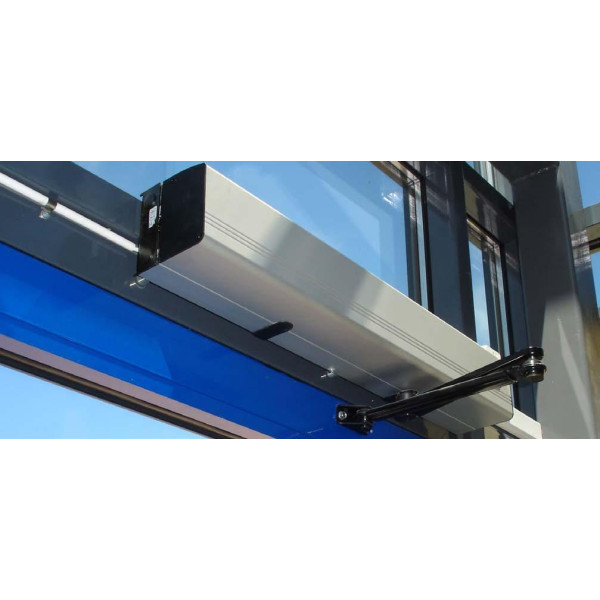

This powerswing operator is suitable for a wide range of applications, from handicapped-access in private homes to high-traffic retail operations.

It is appropriate for both interior and exterior use.


• Can be mounted on either side of the door for pull or push action.
• Available for single or double doors fitted with butt hinges or pivots.
• Can be combined with the full range of EM Entrematic safety and activation units.
• Architecture "friendly" with a possibility to choose black to silver.

Technical specifications

• Mains power supply: 230 V AC ±10%, 50 Hz, fuse 10 A

Note! A readily accessible switch with clearly marked off-position, having a contact separation of at least 3 mm in all poles, must be incorporatedin the fixed wiring in accordance with the wiring rules.

• Power consumption: max. 230 W
• Auxiliary voltage: 24 V DC, 700 mA (stabilized)
• Motor fuse: F16,3 AT
• Control fuse: F2250 mAT
• Recommended max. door weight:

Arm system PUSH: 250 kg for door leaf width 1600 mm
Arm system PULL / PULL-P: 100 kg for door leaf width 1400 mm

The EMSW complies with the door weights/widths stated in the:
Controlled door closing, EN 1154 size 3-6
Electrically powered hold-open device for swing doors, EN1155
Coordination unit for rebated doors, EN 1158
Türschliesser mit Öffnungsautomatik (Drechflügelantrieb),
DIN 18263-4 AU Grösse 3-6

• Safety requirements:  In compliance with DIN 18650–1/2
• Ambient temperature: -15°C to +30°C
• Relative humidity (non-condensing):  max. 85%
• Dimensions Length:

EMSW (standard cover):   716 mm
EMSW-SPEC                      750-1600 mm
EMSW-2                               1435-3200 mm
Height:110 mm
Depth:110 mm

• Class of protection: IP 20

To be installed internally.
