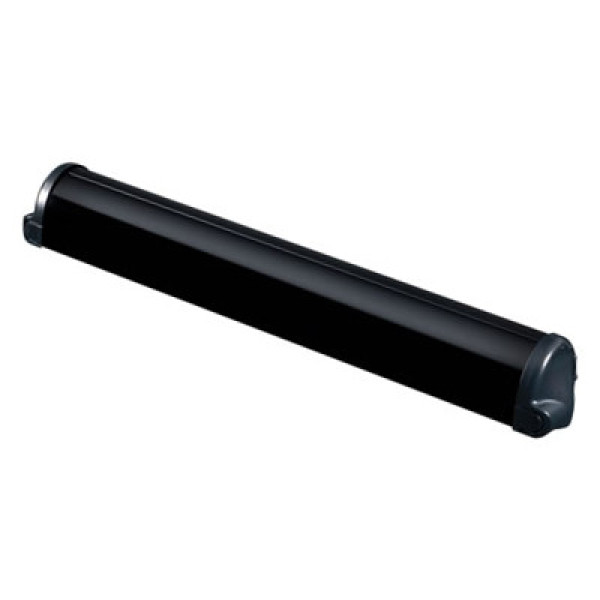

BEA 4SAFE On Door Safety Sensor

On door Safety sensor for swing doors.

  • 4 beams to give a field size of 400 x 70mm at approx 2m mounting height
  • Mounting height from 1.1 to 3.5m
  • One push sensor configuration for easy set up
  • Additional sensors boards can be likned to extend the safety field



TECHNICAL SPECIFICATIONS

Technology:

active infrared with background suppression

Detection field:

400 mm (W) x 70 mm (D) (at 2 m mounting height; 4 spots active)

Mounting height:

1.1 m to 3 m (according to floor reflectivity)

Reaction time:

64 ms (typ)

Max. presence time:

infinite

Supply voltage:

12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10% (to be operated from SELV compatible power supplies only)

Max current consumption:

110 mA @ 24 V AC/ 70 mA @ 24 V DC; 190 mA @ 12 V AC/ 145 mA @ 12 V DC (MASTER)

85 mA @ 24 V AC/ 60 mA @ 24 V DC; 180 mA @ 12 V AC/ 113 mA @ 12 V DC (other modules)

Output:

2 relays (free of potential contact)

Max. contact voltage

42 V AC/DC

Max. contact current

1 A (resistive)

Max. switching power

30 W (DC) / 60 VA (AC)

Input:

1 optocoupler (free of potential contact)

Max. contact voltage:

30 V

Voltage threshold:

high: >10 V DC; low: <1 V DC

Max. number of modules:

4 (up to 6 if 24 V DC)

Reflectivity:

min. 5% at IR-wavelength of 850 nm

Degree of protection:

IP53

Temperature range:

-25 °C to +55 °C; 0-95% relative humidity, non condensing

Expected lifetime:

5 years

Norm conformity:

EMC 2004/108/EC; MD 2006/42/EC; EN 12978 EN ISO 13849-1:2008 Performance Level «c» CAT. 2

(under the condition that the door control system monitors the sensor at least once per door cycle)
