The Microcell One is designed for the safety of pedestrian doors and is featured by a flexibility and an easiness for universal installations :

  • reduced size for easy fittings in most of door profiles
  • enables a mounting very close to the floor (20 cm - 40 cm), as well as an important range (5 m - 10 m) and can be lightly out of alignment
  • protected against short time wrong connections and immuned to the ambient light (sunlight or artificial lighting)
  • totally immune to interference and complies with the European standards 89/336/EEC
  • plug supplied with a special sleeve that prevents from moisture problems




active infrared, microprocessor


Mounting height

min. 0.2 m above the floor


Distance between beams

min. 0.3 m (crossed beams)


Distance in relation to the door plane

2 cm


Minimum range

1 m


Maximum range

5 m - for min. mounting height of 0.2 m; 10 m - for min. mounting height of 0.4 m


Half-opening angle of the beam


Detection mode

presence (beam interruption)


Output response time

≤ 40 ms


Hold time

300 ms


Supply voltage

12-24 V AC ±10% - 12-24 V DC –5/+30%


Current consumption

< 100 mA


max. voltage
max. current
max. switching power / voltage drop

1  relay (free potential contact)
50 V DC / 50 V AC
1 A (resistive)
30 W (DC) / 50 VA (AC)



1 LED per barrier


Temperature range

–20°C to +55°C


Degree of protection

IP 65 (DIN 40050)


Dimensions heads
Dimensions control box

housing : 10 mm (built-in) x 12.4 mm (diameter); collar : diameter 15.6 mm
94 mm (L) x 52 mm (W) x 28 mm (H)


Cable length

5 m (10 m optional)


Weight emitter - receiver
Weight control box

0.140 Kg (5 m) / 0.270 kg (10 m)
0.060 Kg





Housing color

blue transparent



£121.00 Inc VAT £145.20

BEA 4SAFE On Door Safety Sensor

BEA 4SAFE On Door Safety Sensor

£150.00 Inc VAT £180.00

BEA 4SAFE Fog-Proof  Lens Cover

BEA 4SAFE Fog-Proof Lens Cover

£22.40 Inc VAT £26.88

BEA 4SAFE End Caps

BEA 4SAFE End Caps

£11.30 Inc VAT £13.56

BEA IXIO-DT1 Activation & Safety sensor

BEA IXIO-DT1 Activation & Safety sensor

£148.00 Inc VAT £177.60

BEA IXIO & VIO Ceiling Bracket

BEA IXIO & VIO Ceiling Bracket

£18.00 Inc VAT £21.60

Write a review

Please login or register to review

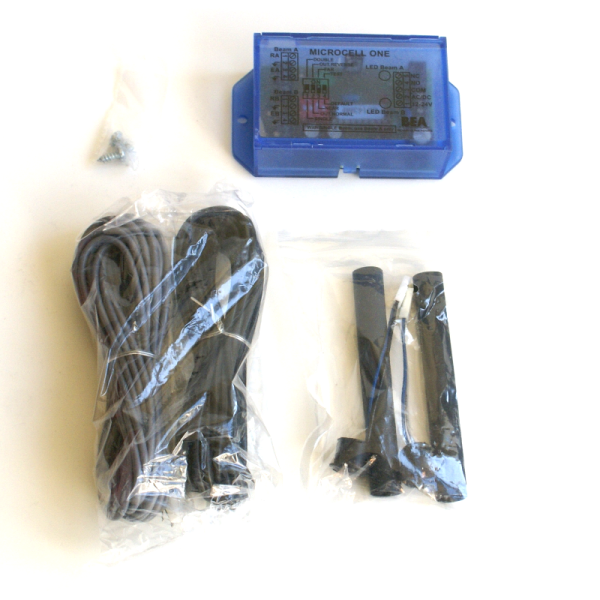

BEA MICROCELL One Safety Beam Single Set
